Library - Den

White vaulted ceiling:

Existing black entertainment center:

Blonde wood:

Round table:

Master Bedroom

Powder blue curtains, taller and longer than windows:

Rug by Stark, Bhutan Collection:

Tiles

Classic tiles from Harlinger, Friesland, The Netherlands. Various shades of faint blue tiles, with a hint of gold, that look to be white at a casual glance:

Extremely popular in Holland, they even make a wallpaper replica of Friese Witjes:

A more detailed view here:

Handmade square tiles: 13 cm x 13 cm, ~8mm thick. 60 pieces per square meter.

Tiles should be placed in the traditional old way: as close as possible together with a maximum 1 millimeter narrow joint.

* * *

In production since 1598, these tiles are still made daily using fine marine clay in the same fashion as 400 years ago:

Art

Marble basso relievo 38.5" x 14.5" x 1.25"

Optimal lighting: 40" to the right, 36" forward, and 9" above top of sculpture.

Butler's Pantry

Transitional Kitchen by Los Angeles Architects & Designers Tim Barber LTD Architecture & Interior Design

Kitchen Appliances & Plumbing

Stove Top

Wolf 36" Gas Cooktop (CG365T/S - 36" Transitional - 5 Burners). Allows room for a drawer for utensils directly below the stovetop.

Dishwasher

Main Dishwasher

Existing Miele G5505 SCU.

Spec sheet here:  http://www.mieleusa.com/pdf/Dishwashers/Dimension_G_5505_SC_Specifications.pdf

Panel and control Prefinished

Width: 23 7/16” (598 mm)

Thickness: ¾” (19 mm)

Height: 30 3/16” (767 mm)

Calculating the toe kick height

30 3/16” – HTC = TKH

HTC = Height to the underside of countertop

TKH= Toe kick height

Second Dishwasher

Thermadore  dishwasher, model to be determined

Ovens

Existing Jenn-Air from job site.

Possibly:

30" Dacor double oven

Wine Cooler

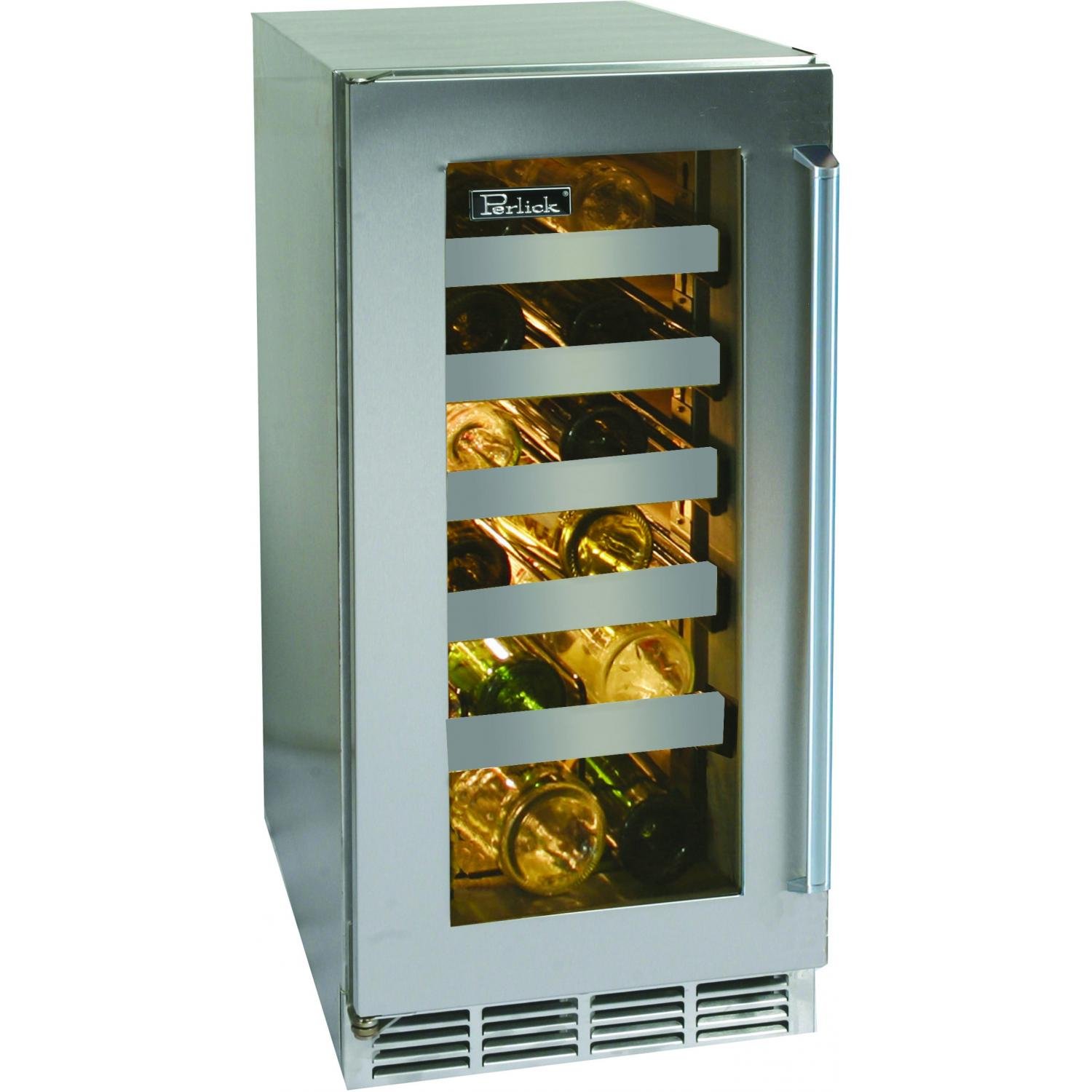

Existing Perlick Signature HP15WSL, 15" Wine Cooler

Instant Hot and Water Filtration

Existing: Faucet: EV900086, Hot Tank: EV931840, Filter system: EV H1200

Sinks

Main Sink Franke GNX11028

Minimum Cabinet Size 33"

Drain Opening3 1/2"

Outer Dimensions28 3/4"x20 7/8"

Bowl Size27 9/16"x19 11/16"x11 3/4"

Number of Bowls: 1

Type of Material18 ga Stainless Steel

Main Faucet

Franke ff-2400r

Prep Sink

Franke ERX110 17" sink

Gauge: 18
Minimum Cabinet Size:: 21" (Undermount)
Minimum Cabinet Size:: 18" (Topmount)
Cut-Out: 16 1/8
Interior Dimensions:: 16 1/8" x 7 1/8"
Exterior Dimensions:: 17 5/8" x 7 1/8"

Refrigerator/Freezers

IT-30CIID Refrigerator/Freezer

Qty: 2, one left-hinged, one right-hinged

TECHNICAL FEATURES

• Dimensions: 30"W x 84"H x 24"D
• Refrigerator capacity: 10.6 cu ft
• Freezer capacity: 5.0 cu ft

Sweep-Away Toe-Kick Vacuum Cleaner

Sweep-Away Specifications

Performance
Air Watts*	450
Air Flow (CFM)	120 CFM
Water Lift	105"
Amps (max)	11.3A
Voltage	120V
Motor	With overload and overheat protector. (Automatically resets once cooled.)
Dimensions
Bag Capacity	1 Gallon
Height	9.5"
Width	13"
Depth	18.25"

Multi-Purpose Room: Living Room/Dining/Theater

Victoria Hagan:

Holly Hunt Hyde Park dining table with two leaves, 96" L x 42" W x 30" H:

Expandable, narrowish dining table:

Extra-long sofa

Contemporary Family Room by Other Metro Architects & Designers Eduarda Correa Arquitetura & Interiores

Furniture layout options:

Contemporary Family Room by Aspen Architects & Designers Charles Cunniffe Architects Aspen

Contemporary Family Room by Los Angeles Home Media Design & Installation Bliss Home Theaters & Automation, Inc

Transitional Family Room by Evanston Architects & Designers Morgante Wilson Architects

Beach Style Living Room by New York Interior Designers & Decorators foley&cox
